Forged Side Entry Soft-Seated Floating Ball Valve 2&3PC, Class 150-2500, Inch1/2"-10"

Zaval forged side entry soft-seated floating ball valves are designed according to ASME B16.34/BS 5351/API 6D, and are mainly used within applications with a wide pressure and temperature range (150LB~2500LB,-46℃~287℃). It is a cost effective alternative for small-sized trunnion mounted ball valves. The valves are fire safe designed and have been certified per API607 and API6FA. We can offers two-piece (Inch 1/2"-10") and three-piece (Inch 1/2"-2") split body designs. Anti-Static Device, and blow-out proof stem design.

Design Features

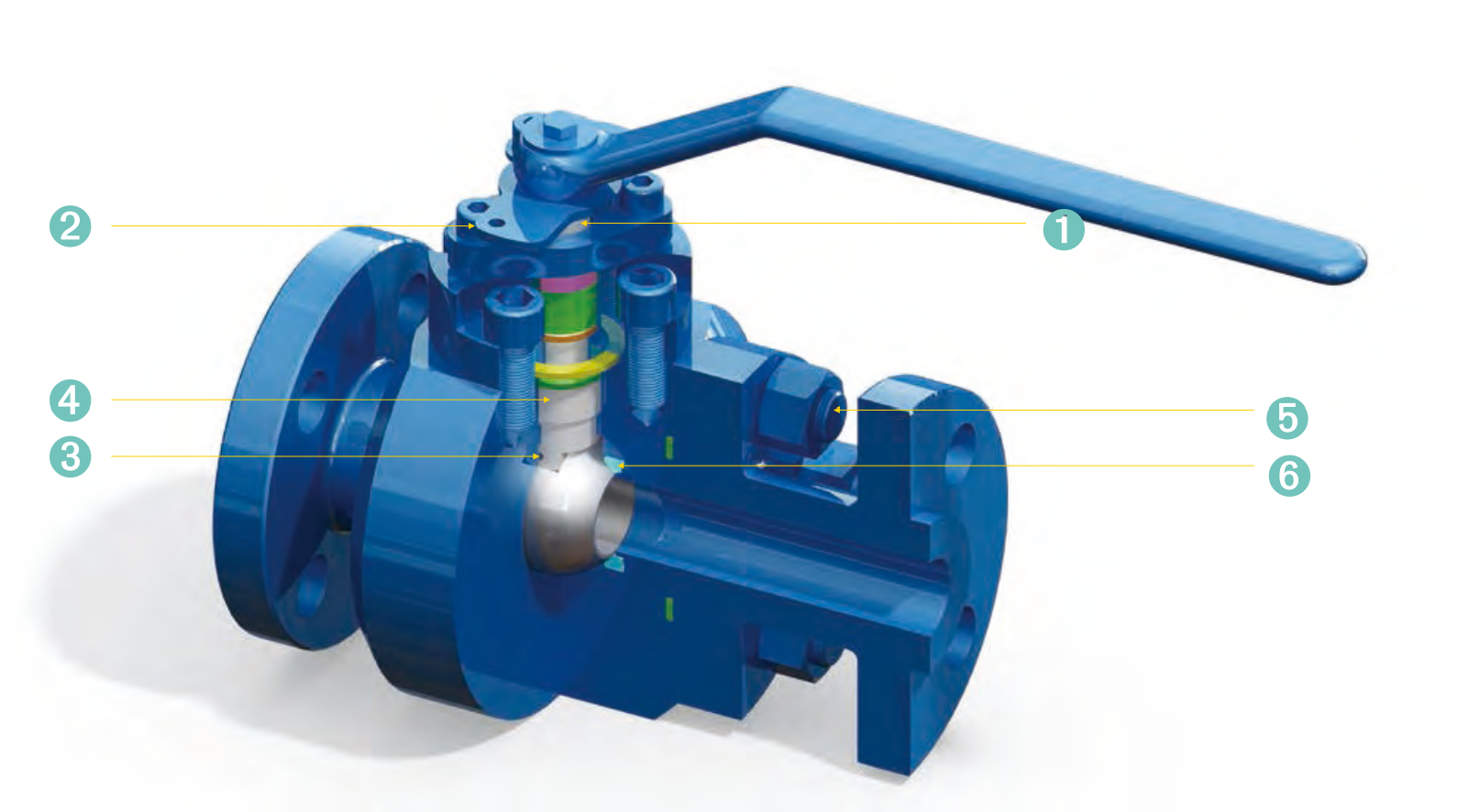

2-piece,Side Entry, Soft-Seated Forged Steel Inch 1/2"-10"( 25-250mm)

1. Double "D" Stem Head: ensures handle lever will always be mounted correctly, parallel to the media flow, indicating valve open and closed positions.
2. Reliable Flow Locking Device: Valve is equipped with an integral locking device to secure flow.
3. Anti-static Device: Spring-loaded plunger assures the electrical continuity between the ball, stem and body, to avoid static buildup.
4. Blow-out proof stem: The lower end of the stem is T-shaped structured, protected by boss of body, which assures stem retention against any pressure.
5. Bolted body-cap configuration: Properly torqued nut is used to maintain seal performance.
6. Fire Safe Design: Metal to metal sealing shuts off valve flow when soft sealing materials are destroyed by fire.

3-piece,Side Entry, Soft-Seated Forged Steel Inch1/2"-2"( 25-50mm)

1. Reliable Flow Locking Device: Valve is equipped with an integral locking device to secure flow.
2. Anti-static Device: Spring-loaded plunger assures the electrical continuity between the ball, stem and body, to avoid static buildup.
3. ISO5211 connection dimension: actuator installation is simplified by using connection dimension recog nized in international standards.
4. Blow-out proof stem: The lower end of the stem is T-shaped structured, protected by boss of body, which assures stem retention against any pressure.
5. O-ring Seal Design: Protects threads from crevice corrosion.

Specifications
